Conveyor Pulley - Style 04


Flat Face Pulley
with Double Groove

Style Matl. Finish
Code
OD
Code
Length
Whole
Inches
Length
32’s of Inch
Bore
Whole
Inches
Bore
32’s of Inch
Bore
Feature
Grv.
Type
Grv.
Loc.
PUL01 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
PUL01 PV S 316 10 00 1 00 A A 0500

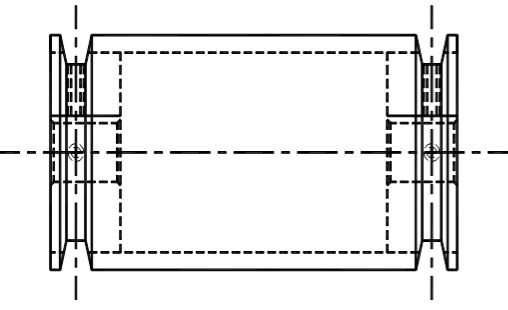

Example Above: Face face pulley with two Grooves, PVC material, machined smooth face, 3-1/2″ OD, 10.00″ long, 1.00″ bore with Keyway and Set Screws and “A” section “V” groove located 1″ from each end of the pulley to center-line of groove.


Material Codes

Material Description Material Description
PV Code for PVC UH Code for UHMW
4S Code for Stainless Steel ** Other materials available on request


Finish Codes

Code Description Code Description
K Code for Knurled Face S Code for Machined Smooth Face


OD Codes (outside diameter)

129 = code for 1.90″OD 228 = code for 2-7/8″OD 400 = code for 4″OD 616 = code for 6-1/2″OD
212 = code for 2-3/8″OD 316 = code for 3-1/2″OD 416 – code for 4-1/2″OD 818 = code for 8-1/2″OD


Bore and Length Codes

08 = code for 1/4″ 14 = code for 7/16″ 20 = code for 5/8″ 26 = code for 13/16″
10 = code for 5/16″ 16 = code for 1/2″ 22 = code for 11/16″ 28 = code for 7/8″
12 = code for 3/8″ 18 = code for 9/16″ 24 = code for 3/4″ 30 = code for 15/16″

First two digits of length code is whole inches.
Second two digits of length code is based on 32’s of an inch increments.
( Example: Length is 15-1/2” = 1516 )


Bore Features

A = Keyway & Set Screws B = Set Screws C = UHMW Journal Bearings D = Machined for Press Fit of ball bearing E = Special – Need Detail of special
